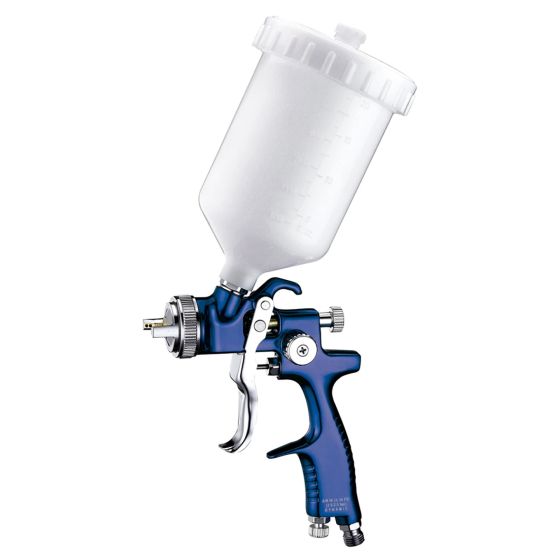

Astro Pneumatic EUROHE109 EuroPro High Efficiency/High Transfer Spray Gun w/ Cup

The Astro Tools EUROHE109 EuroPro High Efficiency/High Transfer Spray Gun with 1.9mm Nozzle & Plastic Cup maintains a higher transfer rate for a quicker pace. By piling the paint higher, this spray gun helps minimize overlap, which is needed on passes. This tool's body is machined from anodized forged CNC and the fittings provide a longer corrosion free tool life and a reduced number of gaskets. This spray gun also features internal coated passages for consistent flow and easier cleaning, stainless steel needle and fluid tip, and a soft trigger pull with a precise lubricated adjustment knob for better control and reduced fatigue.

Features:

• Higher transfer rate for a quicker pace
• Piles paint higher to minimize overlap needed on passes
• Maintains very high transfer efficiency
• Large spray pattern, 12.5" at 7" distance
• Anodized forged CNC machined body and fittings provides longer corrosion free tool life and reduced the number of gaskets
• Internal coated passages for consistent flow and easier cleaning
• Stainless steel needle and fluid tip
• Soft trigger pull and precise lubricated adjustment knob for better control and reduced fatigue
• M16*P1.5 female thread fluid joint is compatible with most traditional and disposable cup systems
• Compatible with waterborne and solvent based products

Specifications:

• Nozzle Size: 1.9mm
• Cup Capacity: 600ml
• Operation Pressure: 29psi
• Weight: 0.7lbs. (325g)
• Gun Dimensions W x H: 7" x 5-34" (175mm x 145mm)
• Avg. Air Consumption: 10.5 – 12.5cfm
• Air Inlet Thread NPT: ¼"
• Required Compressor: 3 – 5hp
• Max. Pattern at 6" to 8"
• Distance: 11" – 13" (280-330mm)
• Air Hose I.D. Size: 3/8"
